81200 Cylindrical Roller Thrust Bearings

81200 Cylindrical Roller Thrust Bearings

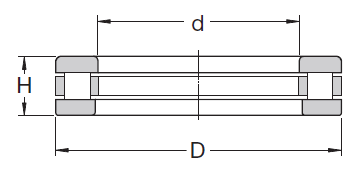

Drawing

Datasheet

Bearing No.	Dimensions			Mass	Bearing No.	Dimensions			Mass
Bearing No.	d	D	H		Bearing No.	d	D	H
–	mm	mm	mm	kg	–	mm	mm	mm	kg
81206	30	52	16	0.12	81252	260	360	79	27
81207	35	62	18	0.21	81256	280	380	80	30
81208	40	68	19	0.25	81260	300	420	95	43
81209	45	73	20	0.29	81264	320	440	95	42.5
81210	50	78	22	0.36	81268	340	460	96	47
81211	55	90	25	0.57	81272	360	500	110	65.5
81212	60	95	26	0.65	81276	380	520	112	70
81213	65	100	27	0.72	81280	400	540	112	73
81214	70	105	27	0.77	81284	420	580	130	95.5
81215	75	110	27	0.8	81288	440	600	130	110
81216	80	115	28	0.9	81292	460	620	130	118
81217	85	125	31	1.2	81296	480	650	135	128
81218	90	135	35	1.75	812/500	500	670	135	133
81220	100	150	38	2.2	812/530	530	710	140	154
81222	110	160	38	2.3	812/560	560	750	150	187
81224	120	170	39	2.55	812/600	600	800	160	240
81226	130	190	45	4	812/630	630	850	175	295
81228	140	200	46	5.05	812/670	670	900	180	335
81230	150	215	50	7.2	812/710	710	950	190	395
81232	160	225	51	7.6	812/750	750	1000	195	445
81234	170	240	55	9.3	812/800	800	1060	205	515
81236	180	250	56	9.95	812/850	850	1120	212	580
81238	190	270	62	12	812/900	900	1180	220	665
81240	200	280	62	13.5	812/950	950	1250	236	805
81244	220	300	63	15	812/1000	1000	1320	250	965
81248	240	340	78	22	812/1060	1060	1400	265	1150
